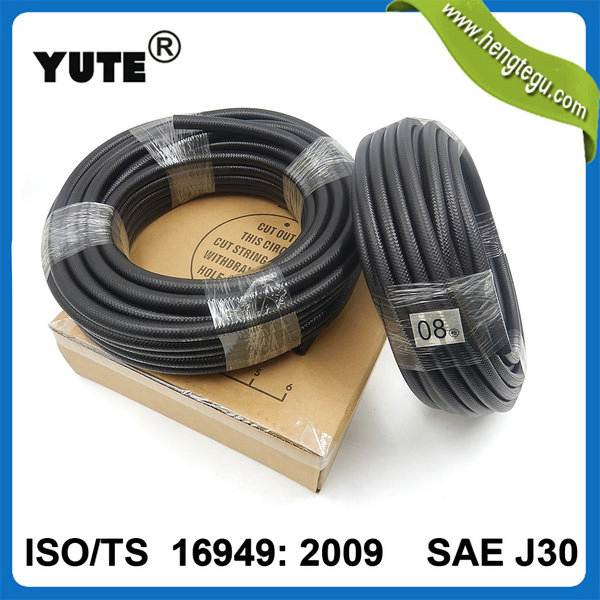

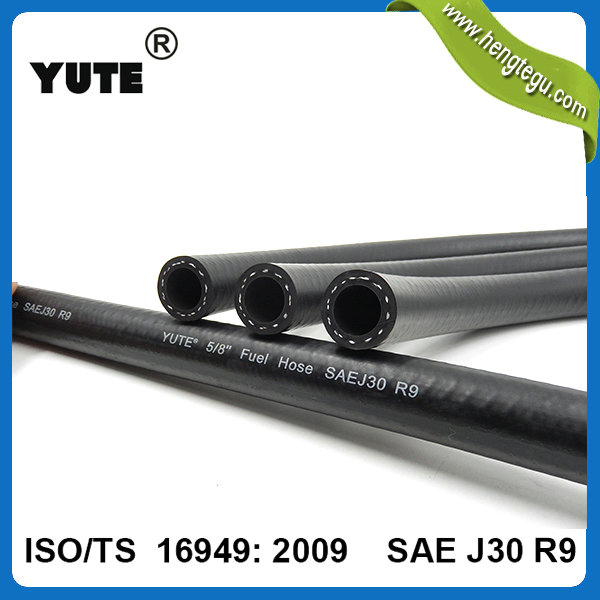

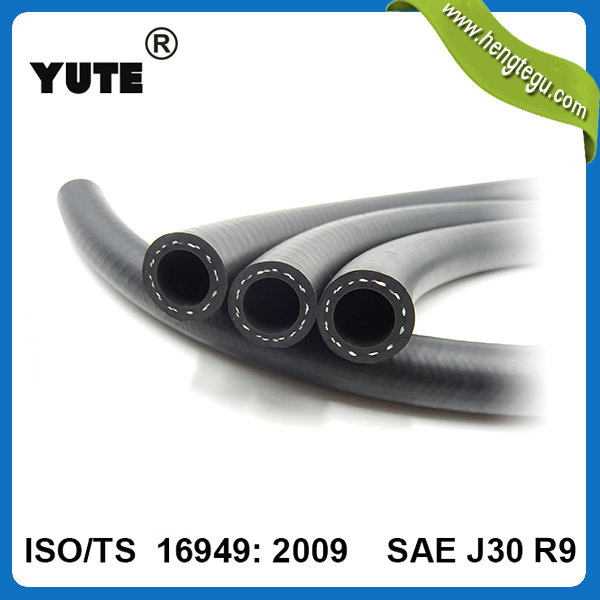

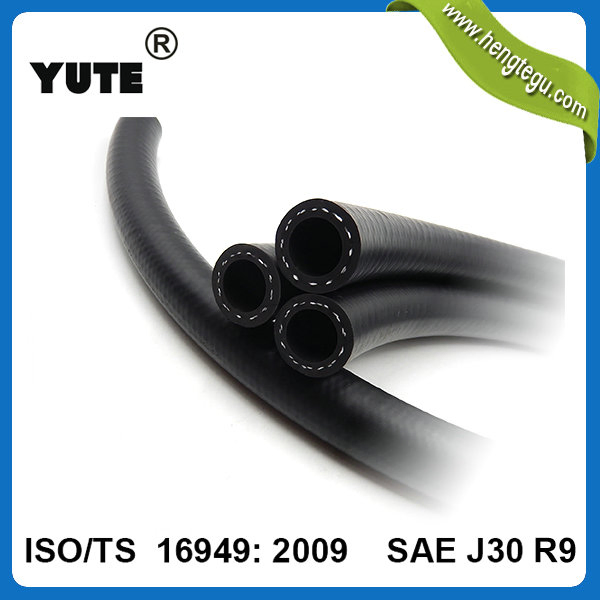

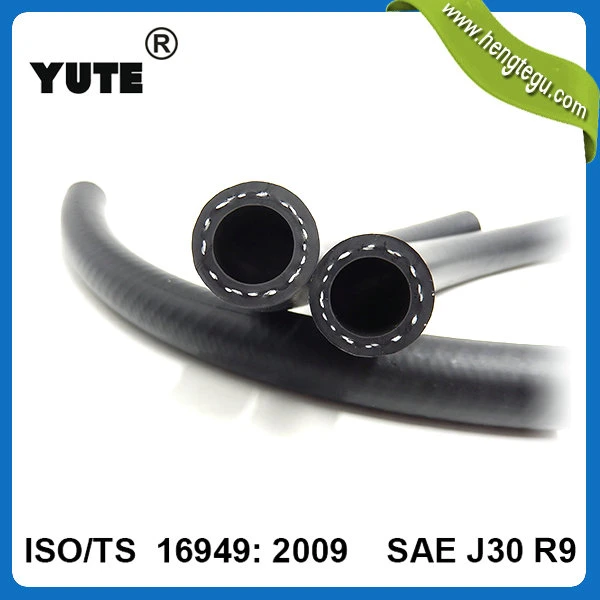

Applications: Used in the transportation of gasoline, ethanol extended gasoline, diesel fuel, lubrication oil, or the vapor present in either the fuel injection system or the crankcase of internal combustion engines.
Construction Details:
| No. | I.D | O.D | W.P | B.P | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | Tolerance | inch | mm | Tolerance | Bar | PSI | Bar | PSI | |
| 1 | 1/8 | 3.2 | ±0.3 | 23/64 | 9 | ±0.3 | 20 | 300 | 80 | 1200 |
| 4 | 1/4 | 6.3 | ±0.3 | 1/2 | 12.7 | ±0.4 | 20 | 300 | 80 | 1200 |
| 6 | 3/8 | 9.5 | ±0.4 | 5/8 | 16 | ±0.5 | 20 | 300 | 80 | 1200 |
| 8 | 1/2 | 12.7 | ±0.5 | 25/32 | 20 | ±0.6 | 20 | 300 | 80 | 1200 |
| 9 | 5/8 | 16 | ±0.5 | 61/64 | 24 | ±0.6 | 10 | 150 | 40 | 600 |
| 10 | 3/4 | 19 | ±0.6 | 1-9/64 | 28.8 | ±0.8 | 10 | 150 | 40 | 600 |
| 11 | 1 | 25.4 | ±0.8 | 1-3/8 | 35 | ±1 | 10 | 150 | 40 | 600 |

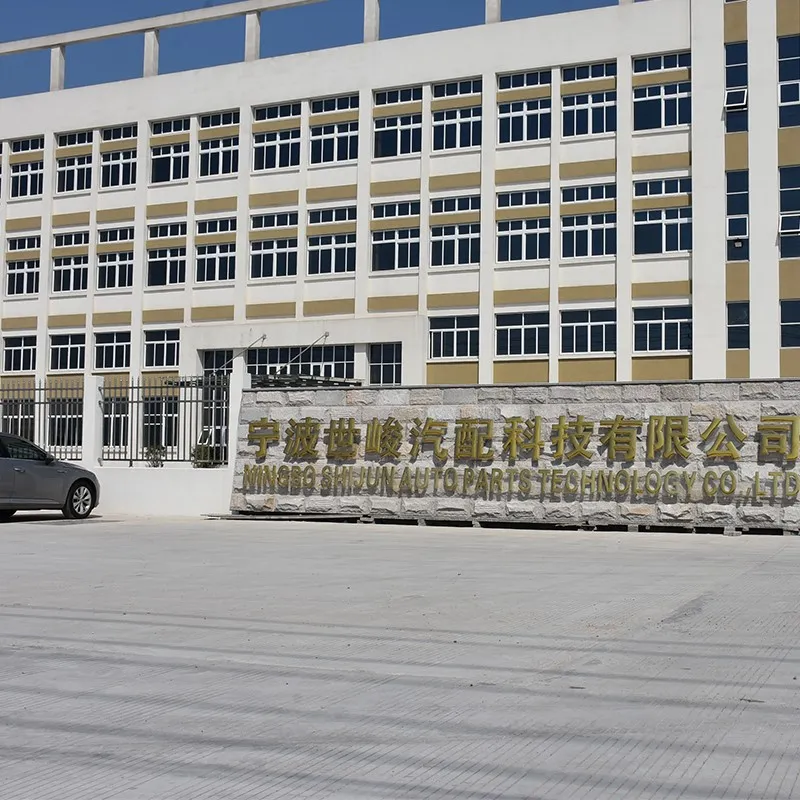

Our facility is committed to the development and production of automobile piping systems, including automobile transmission, chassis, and cooling systems. With ISO/TS 16949:2009 certification, we ensure consistency and stability through an automated rubber mixing center and high-end research and inspection testing centers. Our developments follow SAE and DIN standards, verified by third-party laboratories.
