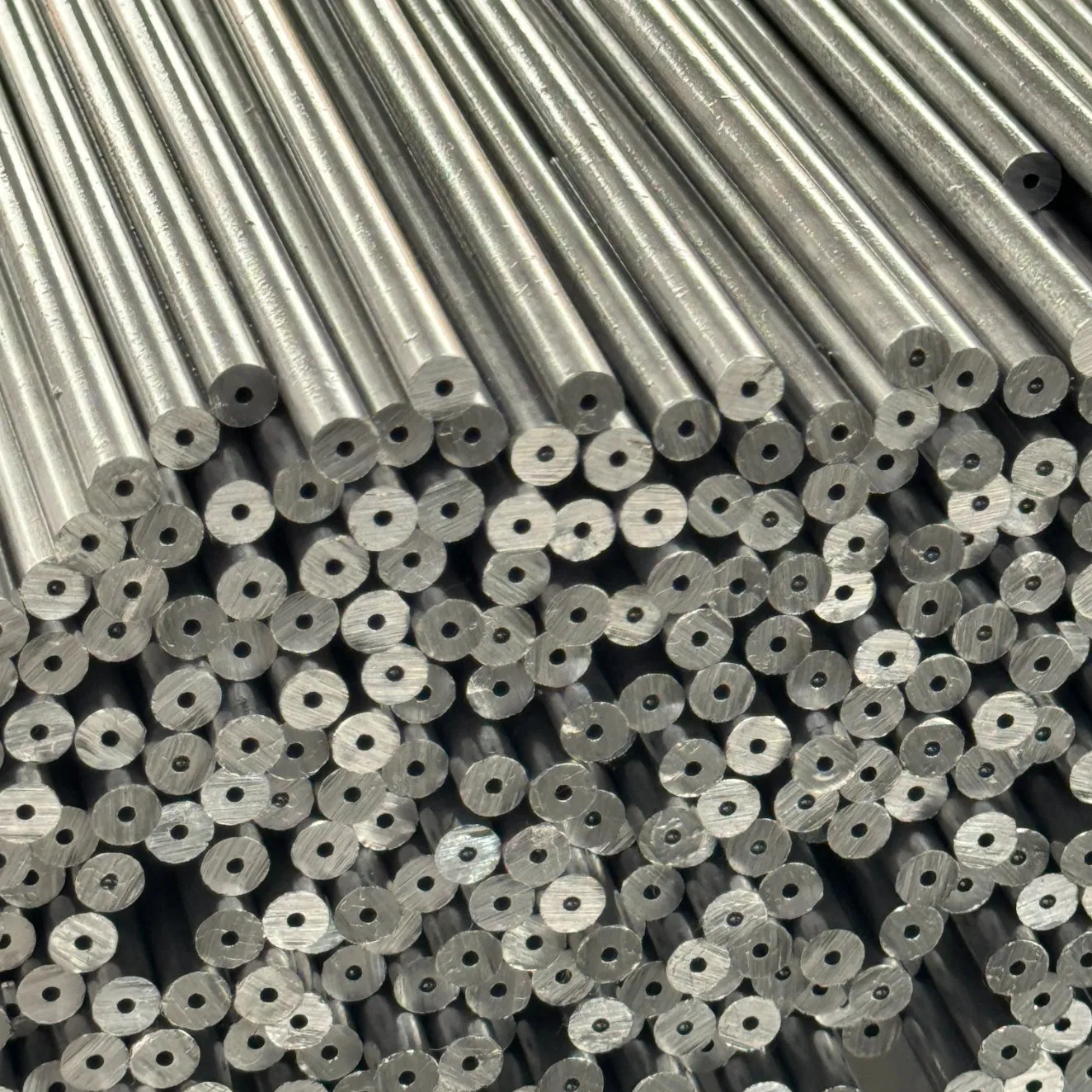

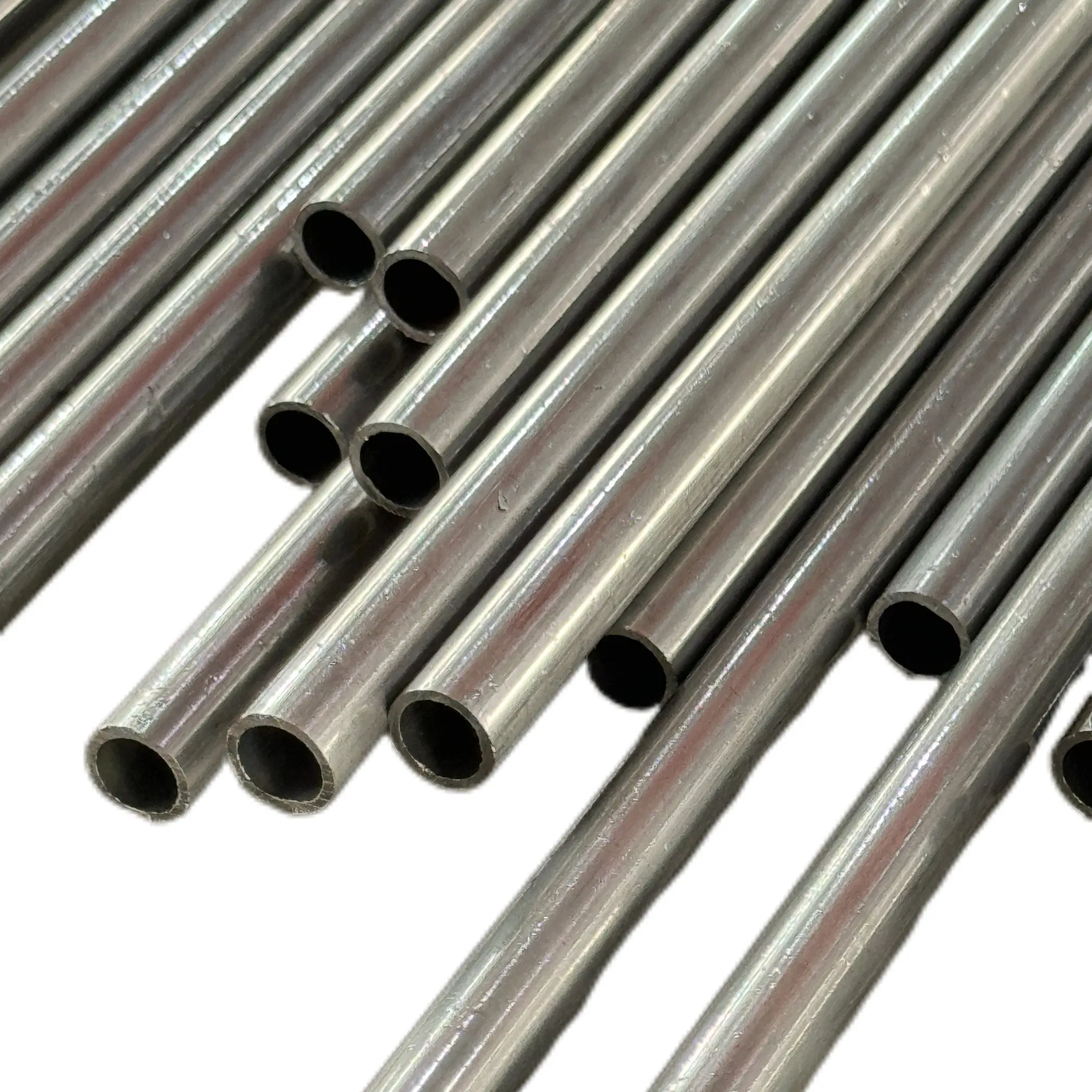

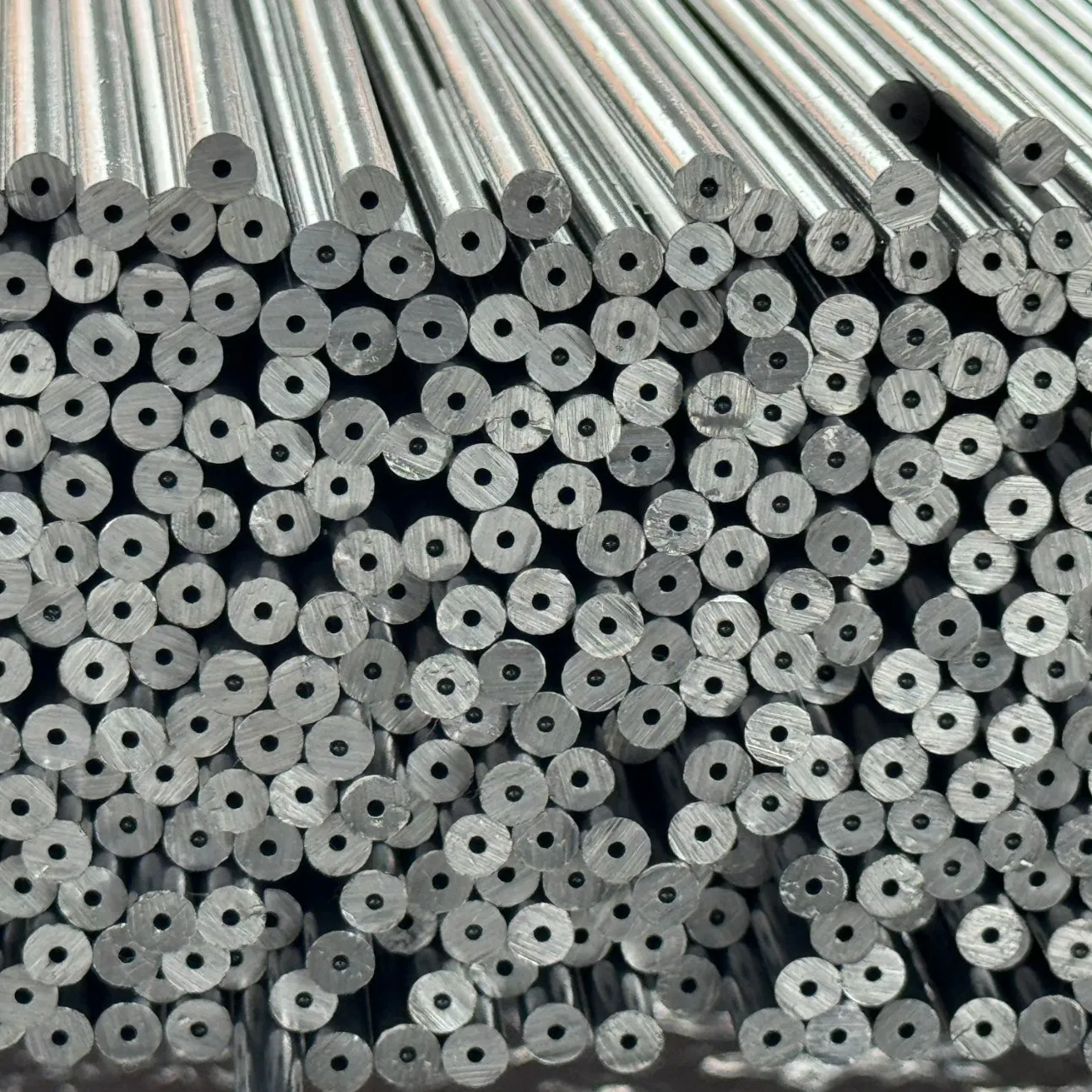

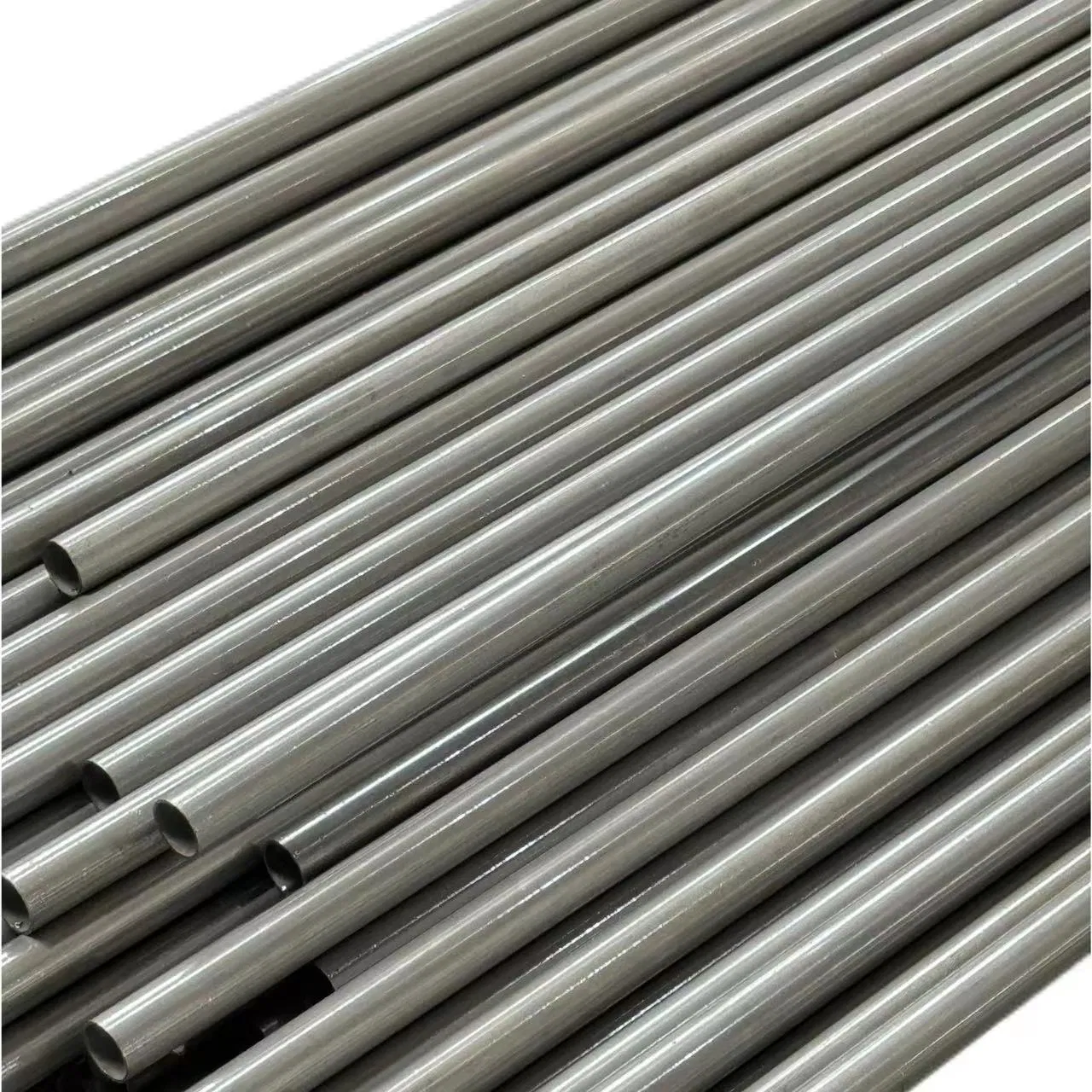

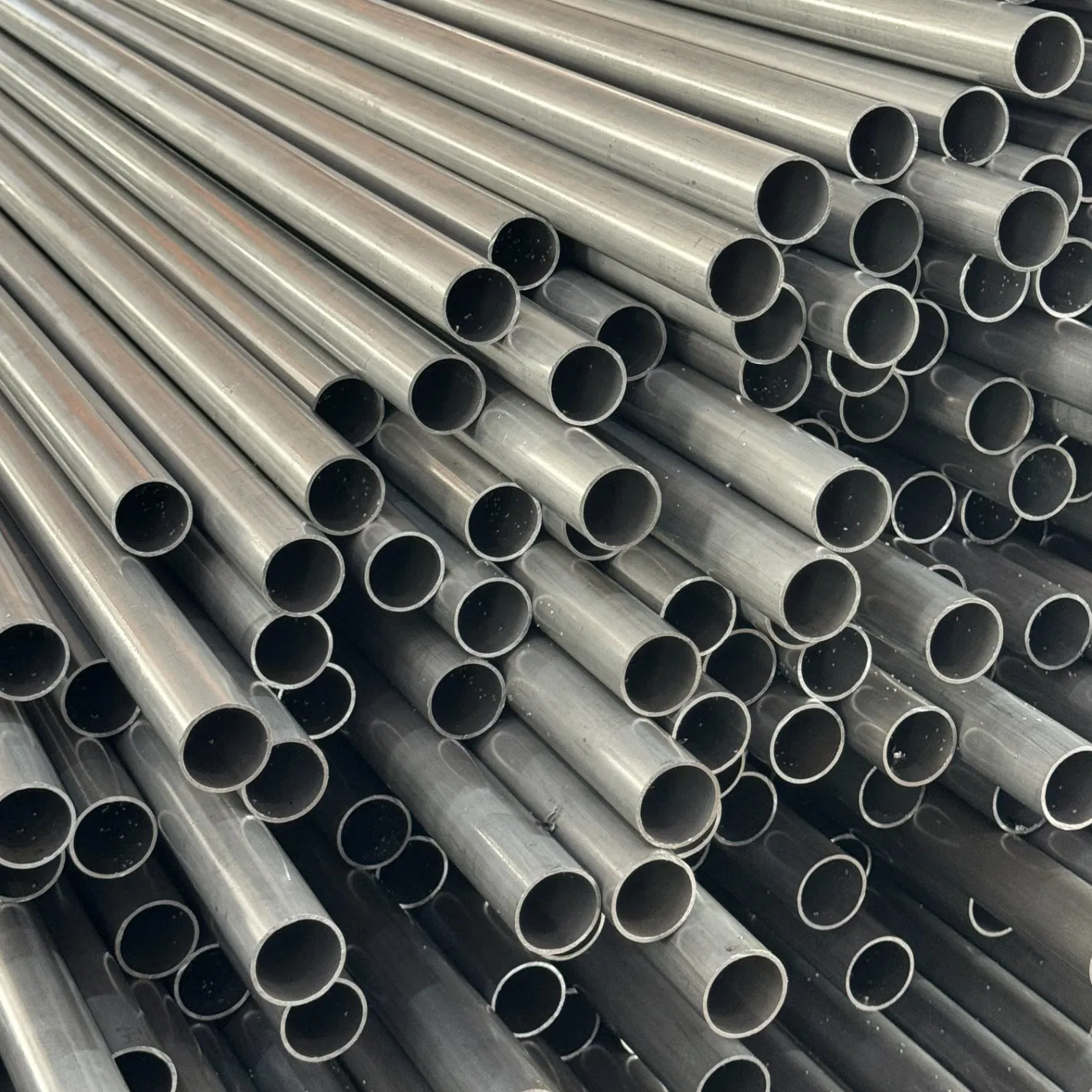

Excavator Pipe Bright Annealing Hydraulic Steel Tubing
Excavator Pipe Bright Annealing Hydraulic Steel Tubing
Excavator Pipe Bright Annealing Hydraulic Steel Tubing
Excavator Pipe Bright Annealing Hydraulic Steel Tubing
Excavator Pipe Bright Annealing Hydraulic Steel Tubing
1 / 5
Excavator Pipe Bright Annealing Hydraulic Steel Tubing
Excavator Pipe Bright Annealing Hydraulic Steel Tubing
Excavator Pipe Bright Annealing Hydraulic Steel Tubing
Excavator Pipe Bright Annealing Hydraulic Steel Tubing
Excavator Pipe Bright Annealing Hydraulic Steel Tubing

Excavator Pipe Bright Annealing Hydraulic Steel Tubing

Customization: Available
Type: Crawler Excavator
Usage: Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Send Inquiry

Product Description

Overview
Detailed Photos
Advantages
Manufacture Process
Packaging & Shipping
📊 Basic Information
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Bucket Capacity
>1.5m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
Transport Package
Wooden Box
Specification
Customized
Trademark
OEM
Origin
China
HS Code
7304319000
🛠️ Product Description

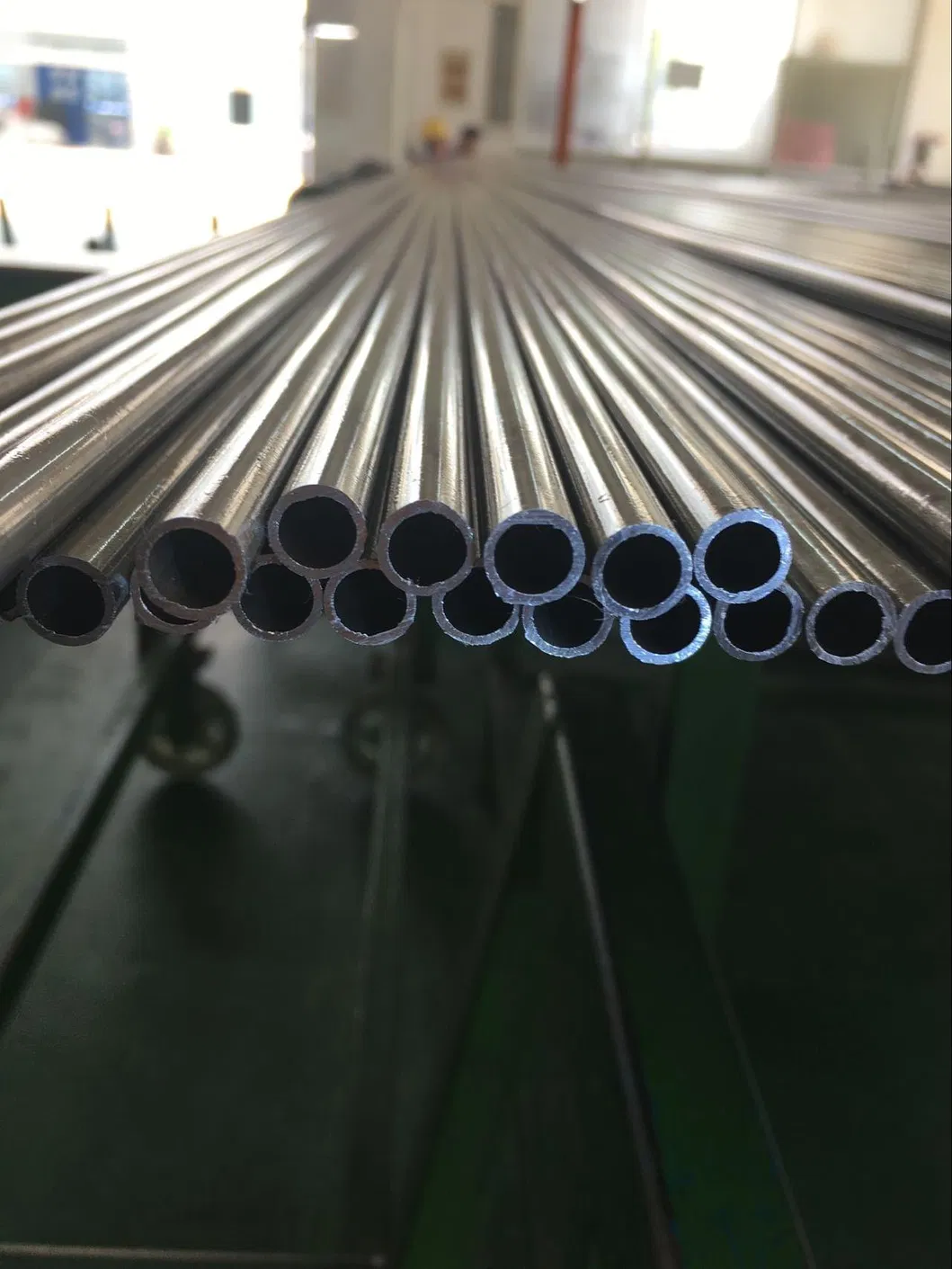

Cold Drawn Seamless Steel Pipe

📸 Detailed Photos
Cold Drawn Seamless Steel Pipe
🌟 Advantages
Excavator Pipe Advantages
COLD DRAWN SEAMLESS STEEL TUBE
Standards Steel Grades Size Range
DIN 2391 / 1629 / 1630 / 2445 / 73000 ST35/45/52, ST37/44/52, ST37.4/44.4/52.4 OD2-60mm × WT0.3-10mm / OD3-30mm × ID1-12.5mm
GB/T 8162 / 8163 / 3639 / 3093 10/20/16Mn/35/45/30CrMo/42CrMo OD2-60mm × WT0.3-10mm / OD3-30mm × ID1-12.5mm
EN 10305-1 / 10305-4 E215/235/255/355 OD2-60mm × WT0.3-10mm
ASTM A822 / A179 / A519 / A269 A822, A179, 1010/1045/4130, 304/316L OD2-60mm × WT0.3-10mm
SAE J524 / J529 Low carbon steel OD2-60mm × WT0.3-10mm / OD3-30mm × ID1-12.5mm
JIS G3445 / G3455 STKM11A/12A/13C, STS35/38/42/49 OD2-60mm × WT0.3-10mm / OD3-30mm × ID1-12.5mm

Delivery conditions: BK (+C), BKW (+LC), BKS (+SR), GBK (+A), NBK (+N)

Major Inspection Items: Tensile strength, Yield strength, Elongation, Flattening, Flaring, Chemical analysis, Eddy Current Test (100%), Size and surface checking (100%)

Certificates: According to EN 10204 3.1

🚀 Applications
1. For Vehicle & Construction
  • Powertrain system: Fuel-rails, Fuel-lines, Common-rail diesel lines
  • Fluid handling: Air-conditioning tube, Clutch actuator pipes
  • Drive & steering: Power-Steering Feed-Pipes
  • Hydraulic system: Pressure Lines, Hydraulic tubing
2. Mechanical & Engineering
  • Mechanic Processing and parts
  • Heat Exchange & Gas Cylinders
  • Sub-sea, Marine & Aerospace
  • Wind Power & Energy Generation

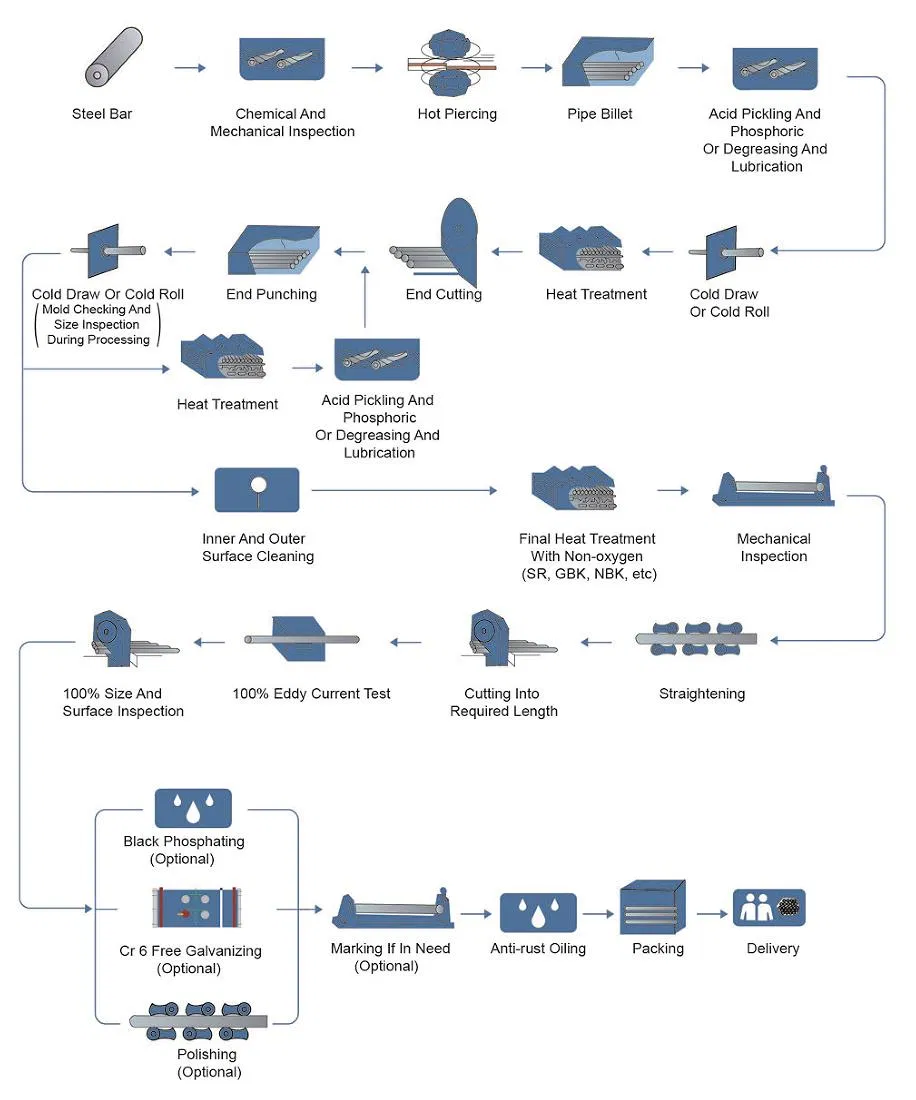

⚙️ Manufacture Process
Manufacture Process

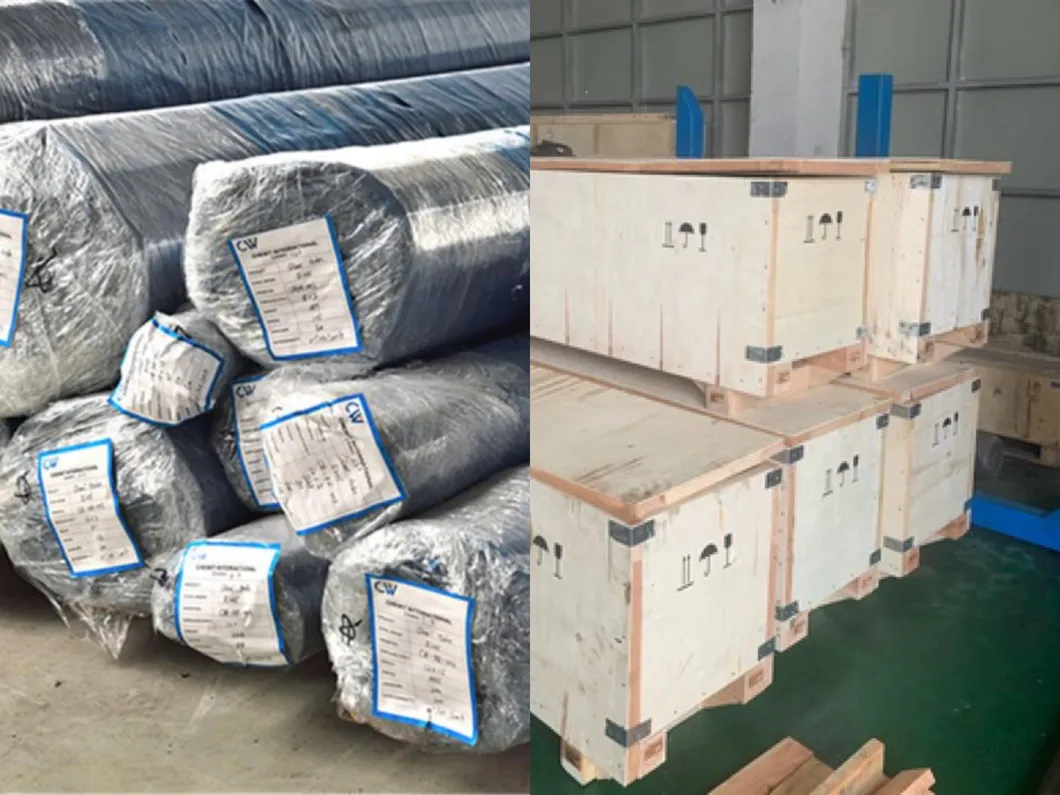

📦 Packaging & Shipping
Packaging and Shipping
❓ Frequently Asked Questions
What are the available delivery conditions for the steel pipes?
We offer various delivery conditions including BK (+C), BKW (+LC), BKS (+SR), GBK (+A), and NBK (+N) to meet different mechanical property requirements.
Which international standards do your seamless steel tubes comply with?
Our products comply with major global standards including DIN (2391, 1629), EN (10305-1, 10305-4), ASTM (A822, A519, A269), GB/T (3639), and JIS (G3445).
What quality inspections are performed on the pipes?
We conduct 100% Eddy Current Testing, size and surface checks. Other major inspections include tensile strength, yield strength, elongation, flattening, flaring, and chemical analysis.
What are the primary applications for these cold drawn pipes?
They are widely used in automotive powertrain systems, hydraulic pressure lines, construction machinery (like concrete pumps), heat exchangers, and aerospace equipment.
Can the size and specifications be customized?
Yes, we provide customized specifications. Our standard size range covers Outer Diameter (OD) from 2mm to 60mm and Wall Thickness (WT) from 0.3mm to 10mm.
What certifications come with the products?
All products are supplied with certificates according to EN 10204 3.1, ensuring full traceability and compliance with quality standards.
